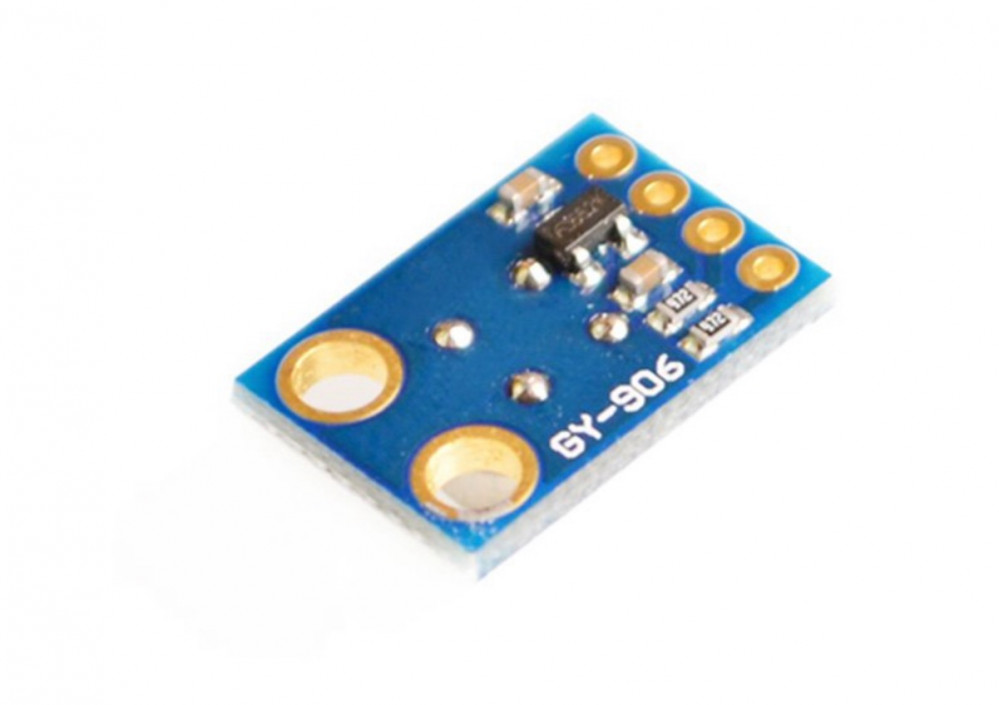

GY-906-BAA MLX90614ESF IR Infrared Temperature Module
باستخدام رقاقة: MLX90614
مزود الطاقة: 3-5 فولت (منظم تسرب داخلي منخفض)
الاتصال: بروتوكول الاتصال القياسي IIC
معروض للبيع مقياس حرارة بالأشعة تحت الحمراء MELEXIS MLX90614ESF-BAA-000-TU-ND للاستخدام مع ، أو أي متحكم يمكنه التواصل معه من خلال واجهة I2C. يأتي هذا المستشعر مزودًا بلوحة فصل مع جميع المكونات اللازمة للتشغيل ونوعين من المسامير. هم غير ملحوم. يرجى توضيح ما إذا كنت ترغب في لحام أحدهما أو الآخر. هناك نوعان من وصلات العبور اللحام لواجهة I2C والتي قد تحتاج أو لا تحتاج إلى لحام وفقًا للتطبيق الخاص بك ، ولكنها لن تكون كذلك في معظم الاستخدامات.
من الصانع:
الميزات والفوائد:
حجم صغير ، تكلفة منخفضة
يتم تثبيته على لوح الفصل مع نوعين من المسامير
10k اسحب المقاومات لأعلى لواجهة I2C مع وصلات لحام اختيارية
سهل الدمج
معايرة المصنع في نطاق درجات حرارة واسع:
-40 ... + 125 درجة مئوية لدرجة حرارة المستشعر و
-70 ... + 380 درجة مئوية لدرجة حرارة الجسم.
دقة عالية تبلغ 0.5 درجة مئوية على درجة حرارة واسعة النطاق (0 ... + 50 درجة مئوية لكل من Ta و To) عالية الدقة () المعايرة
دقة قياس 0.02 درجة مئوية
إصدارات منطقة واحدة ومزدوجة
واجهة رقمية متوافقة مع SMBus
إخراج PWM قابل للتخصيص للقراءة المستمرة
تكيف بسيط لتطبيقات 8 ... 16 فولت
وضع السكون لتقليل استهلاك الطاقة
خيارات الحزمة المختلفة للتطبيقات والقياسات المتعددة
درجة السيارات
أمثلة التطبيقات:
قياسات درجة حرارة عالية الدقة وغير ملامسة
مستشعر الراحة الحرارية لنظام التحكم في تكييف الهواء المحمول
عنصر استشعار درجة الحرارة لمكيفات الهواء في المباني السكنية والتجارية والصناعية
كشف الزاوية العمياء للسيارات
التحكم في درجة الحرارة الصناعية للأجزاء المتحركة
التحكم في درجة الحرارة في الطابعات وآلات التصوير
الأجهزة المنزلية مع التحكم في درجة الحرارة
شفاء
مراقبة الثروة الحيوانية
كشف الحركة
التحكم في درجة حرارة مناطق متعددة - يمكن قراءة ما يصل إلى 127 مستشعرًا عبر سلكين مشتركين
التتابع الحراري / التنبيه
قياس درجة حرارة الجسم
Using chip: MLX90614
Power supply: 3-5V (low internal leakage regulator)
Communication: IIC . Standard Communication Protocol
What arrives for sale is a MELEXIS infrared thermometer offline for use with or any microcontroller that can communicate with it through the I2C interface. This temperature sensor comes with all components required for operation and two types of screws. They are seamless. Please specify if you want to solder one or the other. There are two types of solder jumpers for the I2C interface that may or may not need to be soldered depending on your application, but won't for most uses.
From the manufacturer:
Features and benefits:
Small volume, low cost
Fixed on a drawer with two kinds of staples
I2C 10k Pull Up Resistors With Optional Solder Connectors
easy to integrate
Factory calibration over a wide range of temperatures:
-40 ... 125 ° C for sensor temperature and
-70 ... 380 ° C for body temperature.
High accuracy 0.5°C over wide temperature (0 ...50°C for Ta and) High precision calibration (Medical)
Measurement accuracy 0.02°C
Single and dual zone versions
SMBus compatible digital interface
Customizable PWM output for continuous reading
Simple adaptation for 8...16V applications
Sleep mode to reduce power consumption
Various package options for applications and usage metrics
Auto grade
Application examples:
Highly accurate non-contact temperature measurements
Thermal comfort sensor for portable air conditioning control system
Temperature sensing element for residential, commercial and industrial buildings for air conditioning and windshield removal
Detecting blind corners for cars
Industrial temperature control for moving parts
Temperature control in printers and copiers
Home appliances with temperature control
health care
Livestock control
Motion detection
MULTI-ZONE TEMPERATURE CONTROL - Up to 127 sensors can be read via two common wires
Relay/Thermal Alarm
Body temperature measurement
